Why Undersized HVAC Systems Leave Kansas Homeowners Hot, Sticky, and Frustrated
Understanding how undersized systems fail to keep you comfortable starts with one simple truth: when your HVAC unit lacks the capacity to match your home's actual cooling or heating demand, it never fully catches up. The result is a home that stays warm when it should be cool, feels humid when it should feel fresh, and runs up energy bills despite never doing its job properly.

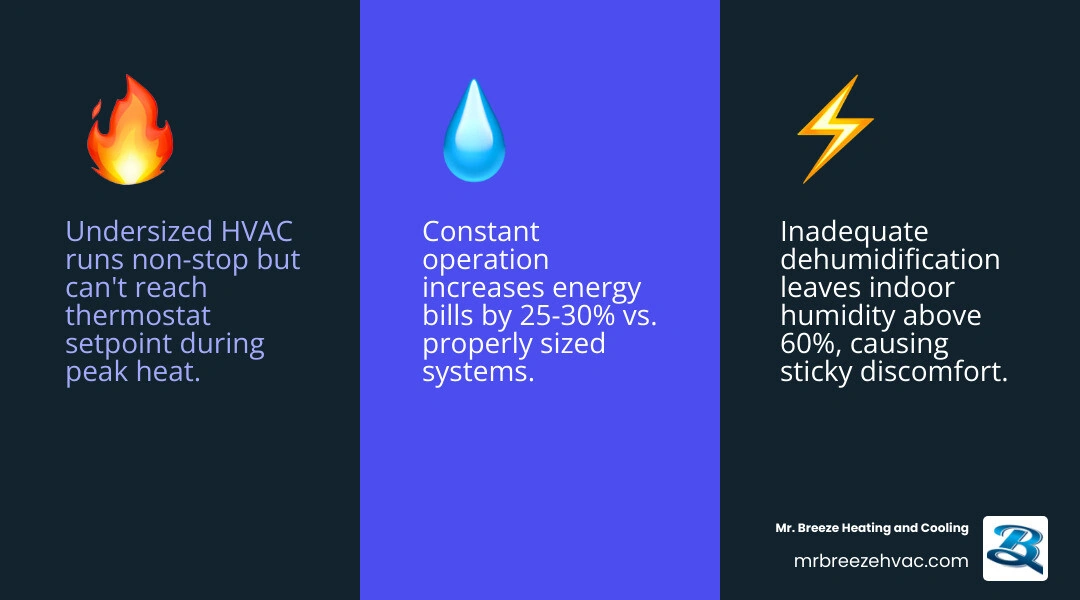

Here is a quick breakdown of how an undersized system hurts your comfort:
- Temperature control fails - The system runs continuously but cannot reach the thermostat set point, especially during peak summer heat in Kansas.
- Humidity stays high - Without completing proper cooling cycles, the system cannot remove enough moisture from the air, leaving rooms feeling sticky and muggy.
- Hot spots form - Rooms farther from the air handler or on upper floors receive inadequate airflow and stay warmer than the rest of the house.
- Energy bills climb - A unit that never shuts off consumes more electricity than a properly sized system that cycles normally, raising utility costs by 25-30%.
- Components wear out faster - Constant operation puts excessive strain on the compressor and blower motor, leading to breakdowns in as little as 2-3 years instead of the expected 7-10.
Many homeowners in the Kansas City metro assume their HVAC system is simply getting old or needs a refrigerant top-off when the real problem is that the unit was never the right size for the home in the first place. A small mismatch between your system's BTU capacity and your home's actual heat-gain load creates a snowball effect — comfort suffers, equipment strains, and costs rise, all at once.
The sections below walk through exactly what is happening inside an undersized system, how to recognize it, and what it means for your home in Leavenworth, Lansing, or anywhere across the Greater Kansas City area.
The Science of Sizing: How Undersized Systems Fail to Keep You Comfortable
At Mr. Breeze Heating and Cooling, we often see homeowners who believe that "any AC is better than no AC." While that might be true during a July heatwave in Basehor, a system that is too small for your square footage is fundamentally incapable of reaching "thermal equilibrium." This is the point where the cooling produced by your unit perfectly balances the heat entering your home from the sun, the air, and your daily activities.
To get sizing right, we don't just guess based on square footage. We use the industry-standard Manual J calculation. This protocol, established by the Air Conditioning Contractors of America (ACCA), measures the exact heat-gain or heat-loss load of every room. It accounts for everything: the R-value of your insulation, the direction your windows face, and even how many people live in the house.
There are two types of "loads" your system must handle:
- Sensible Load: This is the heat that changes the temperature you see on the thermostat.
- Latent Load: This is the moisture or humidity in the air.
An undersized system fails because it spends all its energy fighting the sensible load and never has enough "leftover" capacity to manage the latent load. Even if the air coming out of the vents feels cool, the environment remains swampy. Furthermore, if your ducts aren't designed to handle the specific airflow requirements of your space, the problem is magnified. You can learn more about how professional duct design saves energy to see how the two systems must work in harmony.
Why an undersized system fails to maintain comfortable temperatures
When a unit is too small, it experiences what we call a "comfort stall." Imagine driving a small economy car up a steep hill with five passengers and the trunk full of luggage. You might have the pedal floored, but the car simply cannot go any faster.
In May 2026, as we head into another humid Kansas summer, many homeowners will find their thermostats stuck at 76 degrees even when set to 70. This happens because the "heat-gain load" (the heat coming into the house) is greater than the BTUs the AC can remove. The system runs 24/7, but it is effectively "sprinting a marathon" it can't finish. This is a common culprit when solving uneven cooling issues in piper homes, where sprawling layouts often demand more capacity than a standard "rule-of-thumb" installation provides.
The impact of home layout and climate zones
The geography of the Greater Kansas City area plays a massive role in HVAC performance. Our region sits in a "Mixed-Humid" climate zone. This means we deal with extreme temperature swings and high humidity levels that can make a 90-degree day feel like 100.
Several factors can make a system that should be big enough suddenly feel undersized:
- Sun Exposure: Homes with large, west-facing windows in communities like Tonganoxie or Platte City take on massive amounts of radiant heat in the afternoon.
- Insulation Quality: If your attic insulation has settled over the last 40 years, your "heat-loss load" increases, making your current unit work harder.
- Ceiling Height: High, vaulted ceilings in modern Shawnee homes increase the total volume of air that needs to be cooled, even if the square footage seems manageable.
Red Flags Your HVAC Unit is Too Small for Your Kansas Home
How do you know if your system is actually undersized versus just needing a repair? The most obvious sign is continuous operation. A properly sized HVAC system should run in cycles — it turns on, reaches the temperature, and turns off for a while. If your unit starts running at 10:00 AM and doesn't stop until 2:00 AM, it’s a major red flag.
This leads to what we call "energy bill irony." Homeowners sometimes choose a smaller unit thinking it will save money because it uses less power per minute. However, because it never shuts off, it ends up consuming significantly more electricity than a larger, more powerful unit that cycles off. Statistics show that an undersized system running at a 90% duty cycle can raise utility costs by 25–30% compared to a correctly sized unit. If you've noticed these spikes, it might be one of the signs your shawnee home ac needs professional attention.
How undersized systems fail to keep you comfortable during humid Kansas summers
In Kansas, comfort isn't just about the temperature; it's about the "clammyness." ASHRAE Standard 55, which dictates human comfort levels, notes that indoor humidity above 60% makes a room feel 4–6 degrees warmer than it actually is.
Air conditioners remove moisture by blowing warm air over a cold evaporator coil. The moisture in the air condenses into water droplets and drains away. However, an undersized unit is "always chasing the temperature." Because it’s struggling so hard to lower the degrees, the evaporator coil temperature can fluctuate, and the system never spends enough time in a steady state to effectively pull moisture from the air.
If you feel "sticky" even when the air is blowing, or if you notice temperature inconsistencies in your ductless ac zones in shawnee, your system is likely failing the latent load test.
Component wear and premature mechanical failure
We’ve been in business for 40 years, and one of the saddest things we see is a three-year-old system that is already headed for the scrap heap. HVAC systems are mechanical equipment with a limited number of "run hours" in their lifespan. When a unit is undersized, it racks up those hours at double or triple the normal rate.
The components most at risk include:
- The Compressor: This is the "heart" of your AC. Continuous operation causes heat buildup and friction that leads to total failure.
- Blower Motors: These fans are forced to push air non-stop, leading to bearing failure and electrical burnouts.
- Contactors and Relays: Constant engagement wears down electrical points.
Research shows that undersized systems often require major repairs within 2–3 years, whereas a properly sized unit usually lasts 7–10 years before needing significant work. Keeping an eye on these failures is vital, as they are among the top signs your hvac system needs to be replaced shawnee.
Distinguishing Sizing Issues from Ductwork Problems
Before you run out and buy a larger unit, we have to rule out the "delivery system." Your HVAC unit is the engine, but your ductwork is the transmission. If the ducts are leaky, crushed, or poorly designed, even a perfectly sized unit will seem undersized.
One common issue is static pressure. This is the resistance the blower motor encounters when trying to push air through the ducts. If your ducts are too small for the tonnage of your AC, the air can't get to the rooms where you need it. This creates "dead zones" or hot spots that mimic the symptoms of an undersized unit. Understanding how duct design affects hot and cold spots is the first step in a proper diagnosis.
How undersized systems fail to keep you comfortable compared to leaky ducts
The main difference between a sizing issue and a duct issue is where the "lost" cooling goes. In an undersized system, the cooling capacity simply doesn't exist. In a leaky duct scenario, the cooling capacity exists, but it’s being dumped into your attic or crawlspace instead of your living room.
Leaky or restricted ducts can waste up to 30% of your system's efficiency. We always recommend a thorough inspection of the distribution system because duct design benefits for home comfort can often solve "sizing" problems without the need for expensive equipment replacement.
Symptoms of Undersized vs. Oversized Systems
To help you self-diagnose, we've put together this comparison table. Believe it or not, a system that is too big can be just as uncomfortable as one that is too small!
| Symptom | Undersized System | Oversized System |
|---|---|---|
| Cycle Length | Runs continuously (40+ minutes) | Short-cycles (5-10 minutes) |
| Humidity Levels | High (sticky and muggy) | High (cold and clammy) |
| Energy Consumption | Very high due to long run times | High due to frequent startup surges |
| Thermostat Accuracy | Never reaches the set point | Reaches set point too fast, then shuts off |
| Temperature Balance | Hot spots in far rooms/upstairs | Uneven "pockets" of cold air |
| Equipment Lifespan | Shortened (worn out from overwork) | Shortened (worn out from frequent starts) |
Frequently Asked Questions about HVAC Sizing
What is a Manual J load calculation and why is it essential?
A Manual J calculation is the only scientific way to determine the correct HVAC size. It’s a professional assessment that moves beyond "square footage rules of thumb." In the old days, contractors might say "one ton for every 500 square feet." But a 1,500-square-foot home in Leavenworth built in 1920 has much different needs than a 1,500-square-foot home built in 2024 with modern windows and spray-foam insulation.
We look at building materials, window orientation, ceiling heights, and occupancy loads. If you have a family of six, your "internal heat load" is much higher than a couple living alone. Manual J ensures you aren't paying for more power than you need, but you aren't left sweating with an undersized unit either.
Can an undersized system affect heating performance in Lansing?
Absolutely. While we often talk about AC, an undersized furnace or heat pump is a nightmare during a Kansas cold snap. If your furnace is too small, it will run non-stop but your home will never feel "toasty."
For heat pumps, this is even more critical. Every heat pump has a "balance point" — the outdoor temperature at which the heat pump can no longer keep up with the home's heat loss. An undersized heat pump has a much higher balance point, meaning you'll be switching to expensive auxiliary heat much sooner than necessary. This is a primary factor in what causes uneven heating throughout your home lansing.
Why are my energy bills increasing if the unit is smaller?
It sounds counterintuitive, but "smaller" does not mean "cheaper" if the unit is overworked. Electricity is billed by the kilowatt-hour (kWh). A 2-ton unit uses less power per second than a 3-ton unit. However, if the 2-ton unit has to run for 24 hours a day to keep your house at 75 degrees, and the 3-ton unit only has to run for 8 hours total (in cycles) to keep it at 70 degrees, the 3-ton unit will actually use less total energy.
Furthermore, when a system runs constantly, it generates more internal heat, which causes "efficiency degradation." The hotter the components get, the less efficient they become at moving heat, creating a vicious cycle of rising costs and falling comfort.
Conclusion
At Mr. Breeze Heating and Cooling, we believe you shouldn't have to fight your thermostat every afternoon. With 40 years of experience serving Leavenworth, Lansing, Basehor, and the surrounding areas, we’ve seen how undersized systems fail to keep you comfortable. Our mission is to provide honest, high-quality care that focuses on the "sweet spot" of HVAC sizing — where your system is powerful enough to handle a Kansas heatwave but efficient enough to keep your utility bills in check.
If your home feels "sticky," your energy bills are rising for no reason, or your AC just won't stop running, it’s time for a professional assessment. We don't just sell boxes; we design comfort solutions tailored to the unique thermal profile of your home.
Don't settle for "good enough" when it comes to your family's comfort. Whether you are in Shawnee, Tonganoxie, or Overland Park, let us help you find the perfect fit.
Ready to stop sweating? Contact us today for Professional HVAC Sizing and Duct Design and experience the Mr. Breeze difference.
