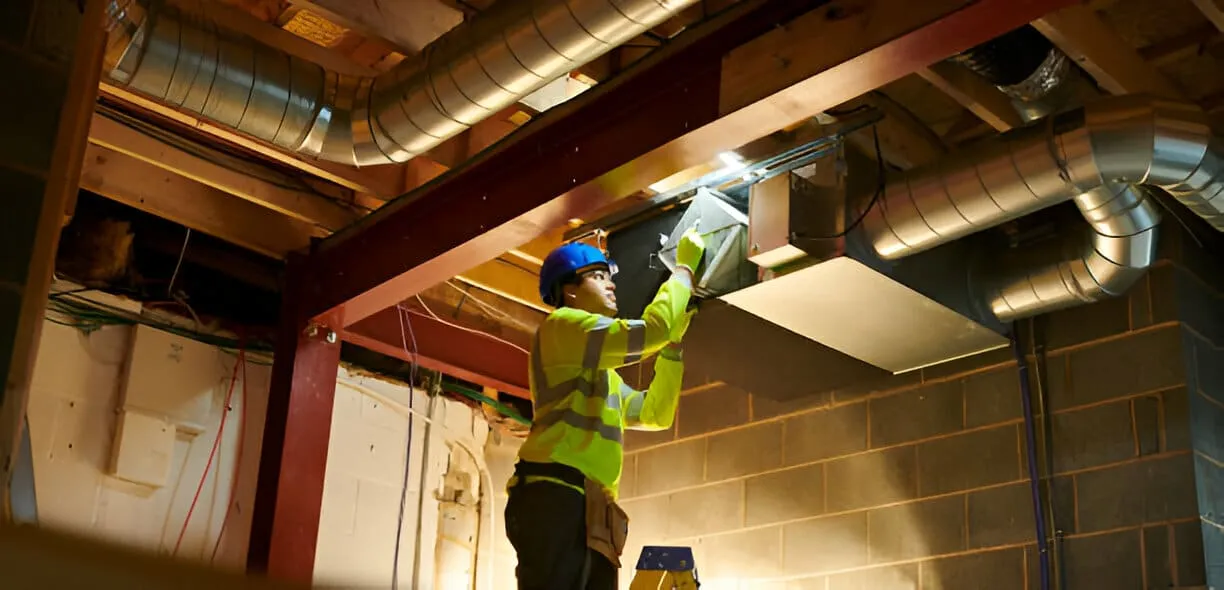

Proper duct design is one of the most important—but often overlooked—elements of a comfortable, efficient heating and cooling system. In Leavenworth, KS, where hot, humid summers and cold winters place wide demands on HVAC equipment, a professionally engineered duct system ensures even temperatures, better humidity control, quieter operation, and lower energy bills. This page explains what a modern duct design service includes, common problems we see in Leavenworth homes, and how a calculated approach (Manual J/D/H/S considerations, load calculations, and testing) delivers long‑term comfort and efficiency.

Common duct design issues in Leavenworth homes

• Undersized or oversize duct runs causing rooms that never reach setpoint or systems that short‑cycle
• High static pressure from restrictive runs, too many bends, or undersized returns
• Poorly sealed ducts and connections that leak conditioned air into attics and crawlspaces
• Inadequate insulation in unconditioned spaces leading to heat gain/loss and humidity problems in summer
• Imbalanced airflow with hot or cold spots, often caused by improper register sizing or layout
• Retrofits in historic or older homes where duct routing is constrained by existing framing

What a professional duct design includes

A thorough duct design uses industry‑accepted protocols and on‑site verification to match your home’s needs:

• Load calculation (Manual J): a room‑by‑room heating and cooling load calculation that accounts for Leavenworth’s climate, insulation levels, window orientations, occupancy, and internal gains. This determines the correct equipment capacity.
• Equipment selection (Manual S): choosing furnaces, heat pumps, or air conditioners that match the calculated loads while maintaining efficiency and humidity control.
• Duct layout and sizing (Manual D): a custom plan that routes supply and return runs, sizes trunks and branches, and places registers for ideal supply diffusion and return air pickup.
• Hydronic considerations (Manual H where applicable): for homes with radiant or hydronic heating, integrating duct and distribution planning so systems complement each other.
• Static pressure and airflow targets: designing so the system operates within recommended static pressure limits to protect equipment life and performance.
• Access and service planning: locating plenums, filter positions, and access panels for easy maintenance and future service.
• Verification testing: airflow measurements, static pressure checks, and duct leakage testing to confirm performance.

Materials and insulation options

Material selection affects durability, noise, and efficiency. Typical options we consider for Leavenworth projects include:

• Galvanized sheet metal trunks for low‑loss main distribution runs and commercial applications
• Low‑profile rectangular duct when space is limited in basements or crawlspaces
• Quality flexible duct for short, properly supported branch runs—installed to minimize kinks and excessive compression
• Ductboard in specific applications where installed correctly and protected from moisture
• Insulation: higher R‑value insulation for ducts in unconditioned attics (commonly R‑8 or greater), and internally lined ducts or external wrap to reduce conductive losses and condensation risk

Sealing materials matter: mastic or UL‑approved foil tape at seams, gasketing at plenums, and aerosol duct sealants for hard‑to‑reach leaks produce far better long‑term results than standard cloth tape.

Airflow balancing and static pressure optimization

Balanced airflow is essential for comfort and efficiency. A properly designed system specifies:

• CFM per room based on the Manual J loads and register locations
• Adjustable dampers on branches to fine‑tune room‑by‑room airflow
• Return pathways sized to prevent negative pressure and to support efficient circulation
• Target total external static pressure (commonly a conservative range is used so equipment operates efficiently and reliably) and a plan to avoid causes of excessive pressure such as overly long flexible runs, abrupt transitions, and numerous sharp bends

During commissioning, technicians measure supply and return CFM and adjust dampers and registers so each space receives the designed airflow. This step often resolves persistent hot or cold rooms.

Leak testing and sealing

Duct leakage wastes energy and can introduce dust and allergens. Professional services include:

• Duct leak testing using a duct blower to quantify leakage and locate problem areas
• Sealing major seams and connections with mastic or foil‑backed tape and gasketing at plenums
• Insulating and protecting sealed ducts in attics or other exposed spaces to prevent condensation and thermal loss

Reducing leakage improves efficiency, humidity control in Kansas summers, and indoor air quality.

Benefits for new construction and retrofits in Leavenworth, KS

• Improved comfort with fewer hot/cold spots and better humidity control during humid summers
• Lower operating costs through correct equipment sizing and reduced duct losses
• Longer equipment life by reducing short‑cycling and excessive static pressure on fans
• Quieter operation and fewer drafts through well‑placed registers and properly sized runs
• Better indoor air quality via balanced return paths and properly located filtration

Leavenworth’s housing mix—historic homes with limited cavities and newer suburban builds—means tailored solutions matter. In new construction, duct design can be integrated early for optimal routing; in retrofits, the design must respect existing architecture while fixing performance problems.

Portfolio examples (typical projects)

• Historic bungalow retrofit: re‑routing returns and replacing compressed flex runs to eliminate cold rooms without invasive framing changes
• New construction suburban home: Manual J/D/S driven design with insulated trunking, Daikin compatible equipment selection, and multi‑zone dampers for even comfort across levels
• Small commercial office: metal trunking, dedicated return pathways, and commissioning to meet tenant comfort and code requirements

Consultation and cost steps

Standard project phases for a duct design engagement:

1. Pre‑survey information: basic home details, existing equipment, and project goals
2. On‑site survey: measurements, access inspection (attic, crawlspace), and condition assessment
3. Calculations and layout: Manual J load report, Manual D layout and sizing, and equipment options under Manuals
4. Proposal with scope and material options: retrofit vs new construction alternatives and phasing if needed
5. Installation oversight and verification testing: airflow balancing, static pressure measurement, and duct sealing verification

Costs vary based on home size, accessibility, number of supply/return points, material choices, and whether the project is a retrofit or new build. Complex routing, multiple levels, or the need to relocate framing or duct chases will influence labor and material requirements.

Maintenance and long‑term tips

• Keep filters changed and returns unobstructed to reduce pressure and maintain airflow
• Inspect attic and crawlspace ducts seasonally for insulation integrity and evidence of leaks or rodent damage
• Retest and re‑balance after major renovations or equipment changes
• Consider zoning or smart thermostats only after the duct system is correctly sized and sealed; controls amplify benefits only when distribution is right

A properly designed duct system tailored for Leavenworth conditions solves chronic comfort problems and supports efficient, reliable HVAC performance for years to come.
