Proper duct design is one of the most important (and often overlooked) elements of an efficient, comfortable HVAC system. In Bonner Springs, KS, where hot, humid summers and cold winters place large seasonal demands on heating and cooling systems, a carefully engineered duct system reduces energy use, eliminates hot or cold spots, improves indoor air quality, and extends equipment life. This page explains the practical steps, common problems, and verification methods used in professional duct design so you can evaluate solutions for your home or project.

Why accurate duct design matters in Bonner Springs homes

• Seasonal extremes in this region amplify the effect of poorly sized or leaky ducts: overstressed equipment, short cycling, and uneven humidity control are common outcomes.
• Many older homes or houses with later additions have mismatched equipment and ductwork that were never recalculated after changes.
• Attic and crawlspace ducts exposed to high summer temperatures or cold winter air increase thermal losses unless properly insulated and sealed.

Common duct design issues in Bonner Springs, KS

• Undersized return pathways that create negative pressure, pulling dust and combustion byproducts into living spaces.
• High static pressure caused by tight or convoluted duct runs, leading to noisy operation and reduced airflow.
• Inadequate duct insulation in attics or unconditioned spaces, causing substantial cooling/heating losses.
• Imbalanced airflow: some rooms receive too much airflow while others receive too little, creating persistent comfort complaints.
• Duct leakage at joints and boots, sometimes exceeding 20-30% of conditioned air in poorly sealed systems.

Key standards and considerations (Manual J / C / D)

A complete design uses industry-standard calculations and practices:

• Manual J: residential heating and cooling load calculations to determine the correct system capacity for your home size, orientation, insulation, windows, and occupancy.
• Manual D: duct design procedures that translate the load and equipment selection into duct sizes, layout, and acceptable friction losses to meet target airflow.
• Manual C (commercial or special-case calculations): applied when non-residential load factors or complex multi-zone commercial systems are involved.These calculations are combined with local code requirements, the International Mechanical Code/International Residential Code references, and any Bonner Springs or Wyandotte County amendments to ensure compliance.

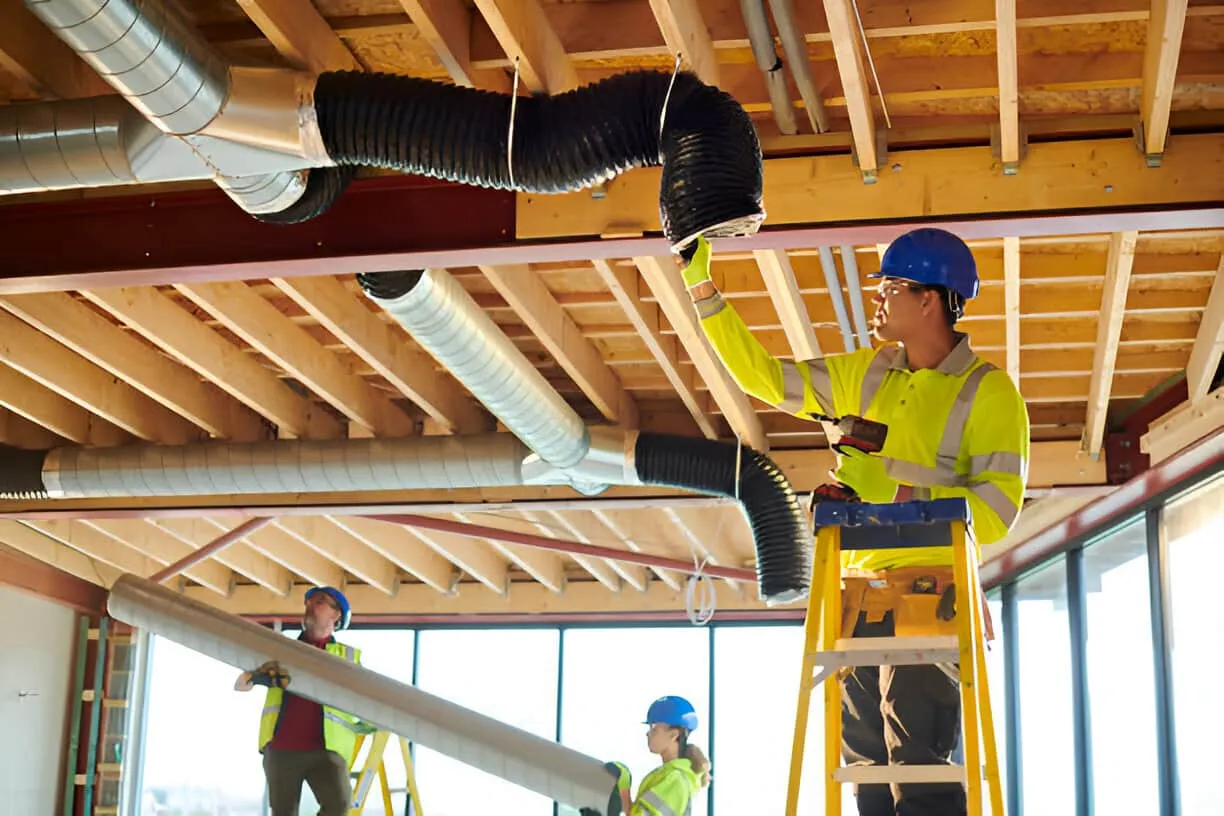

Duct sizing and layout planning

• Duct sizing balances friction loss, available static pressure from the equipment, and practical run lengths. Properly sized ducts minimize noise and preserve designed equipment performance.
• Layout planning prioritizes short, straight runs for major trunks, strategically located returns, and balanced branch runs to each room.
• Special attention is given to closets, attics, and conditioned vs unconditioned spaces. Where possible, locating trunks inside conditioned spaces reduces energy loss and condensation risk.

Material and insulation recommendations

• Sheet metal (galvanized) for main trunks provides durability and low leakage. Flexible duct (insulated) is acceptable for shorter branch runs when supported and stretched properly.
• Insulation: for ducts running through unconditioned attics or garages in Kansas climate, insulated ducts are generally recommended (typical field practice ranges from R-6 to R-8 depending on exposure). Properly sealing the insulation layer and protecting it from compression or damage is crucial.
• Use closed-cell foam board or insulated duct board in specific applications where low-profile routing is needed.

Strategies for sealing and balancing airflow

• Sealing: apply mastic at seams and connections, use code-approved foil tape on long seams, and consider aerosol-based duct sealing for hard-to-reach leaks.
• Return design: include appropriately sized, unobstructed return pathways and, where needed, dedicated return ducts instead of relying on transfer grills.
• Balancing: measure delivered CFM at each register with an airflow hood or balometer, and adjust dampers or rebalance the system to meet design airflow to each space.
• Zoning and controls: for homes with widely varying loads, zone dampers and smart control strategies can maintain comfort while reducing cycling losses.

Retrofit vs new-construction workflows

• New construction: begins with blueprints, Manual J and D calculations, coordinated layout with framing and insulation plans, and pre-construction approvals. Ducts can be routed inside conditioned chases to maximize efficiency.
• Retrofit: starts with a full diagnostic: load verification, duct leakage test, static pressure and airflow measurement, and inspection for undersized trunks or blockages. Solutions range from targeted sealing and re-sizing of key runs to a full redesign when additions or equipment upsizing is required.

Testing and verification: what professionals measure

• Static pressure: measured at the air handler to confirm total external static pressure is within equipment limits—key to preserving fan performance and SEER efficiency.
• Airflow (CFM): measured at returns and supplies to verify the system delivers the designed airflow distribution to each zone.
• Duct leakage testing: performed with a duct blaster to quantify leakage and confirm sealing effectiveness after repairs.
• Temperature split and comfort verification: checks to ensure supply temperatures, humidity control, and room-by-room comfort targets are met.

Energy-efficiency and long-term benefits

• Proper duct design reduces energy costs by delivering conditioned air efficiently and minimizing losses. Correct sizing avoids short cycling, improving equipment longevity and maintaining rated SEER/AFUE performance.
• Balanced systems improve humidity control during hot Kansas summers, reducing perceived discomfort and mold risk.
• Well-sealed, insulated ducts often reduce HVAC runtime and lower whole-house energy consumption, which is particularly valuable given seasonal extremes.

Code compliance, safety, and indoor air quality

• A compliant design addresses combustion air requirements, return paths, fresh air ventilation, and avoids creating negative pressure that can backdraft combustion appliances.
• Duct installations follow mechanical code provisions for clearances, insulation, and fireblocking where required.
• Attention to return filtration, sealed returns, and proper duct materials contributes to better indoor air quality throughout the year.

Typical project timelines and deliverables

• Design and load calculation package: typically completed within a few days for a standard residential property once measurements and plans are collected.
• Retrofit diagnostics and proposals: on-site testing (pressure and airflow) is usually done in a single visit; options and timelines for repairs or replacement are provided after analysis.
• Installation and verification: for typical single-family homes, installing or modifying duct systems and completing balance/testing is commonly scheduled over 1–3 days depending on scope.

Maintenance and practical next steps for homeowners

• Periodic checks: inspect accessible ducts, registers, and insulation each season for visible damage or disconnections.
• Rebalance after major changes: if you remodel, add conditioned space, or replace equipment, request updated Manual J/D calculations and a rebalancing session.
• Consider energy improvements: sealing and insulating ducts in unconditioned spaces often provides one of the highest returns on investment in comfort and efficiency.

A professionally engineered duct design tailored to Bonner Springs climate and home specifics transforms system performance. Clear load calculations, correct duct sizing, quality materials, rigorous sealing, and measured balancing are the practical steps that resolve chronic comfort problems and preserve HVAC efficiency across seasons.
