UV Lights in Platte City, KS
UV lights for HVAC systems are a proven solution to reduce microbial growth on coils and drain pans, improve indoor air quality, and help systems run more efficiently. In Platte City, KS, where warm humid summers and high seasonal pollen create ideal conditions for mold and biofilm, in-duct and coil-mounted UV germicidal lamps are particularly valuable for keeping HVAC equipment clean and reducing odors and allergen re-circulation in homes.
Why UV lights matter in Platte City homes
Platte City experiences hot, humid summers and variable spring pollen loads. Those conditions accelerate biological growth on evaporator coils and inside ductwork. Common consequences include reduced cooling capacity, higher energy use, musty odors, and increased allergen exposure. Installing the right UV system addresses the root cause by continuously disrupting microorganisms where they grow: on coil surfaces and in the airstream.
Common UV system types and when to use them
- Coil-mounted UV (germicidal lamp aimed at the evaporator coil and drain pan)
- Best for residential split systems and packaged units with accessible indoor coils.
- Targets biofilm that causes reduced heat transfer and clogged drain pans.
- In-duct UV (lamp bank mounted inside supply or return ductwork or AHU plenum)
- Used when you want additional air-stream disinfection or when coil access is limited.
- Recommended for larger homes or systems serving multiple zones.
- Combined systems
- Coil-mounted plus in-duct lamps offer both localized coil sanitation and airborne microbial reduction for high-risk situations (severe allergies, immunocompromised occupants).
How UV germicidal systems work (plain language)

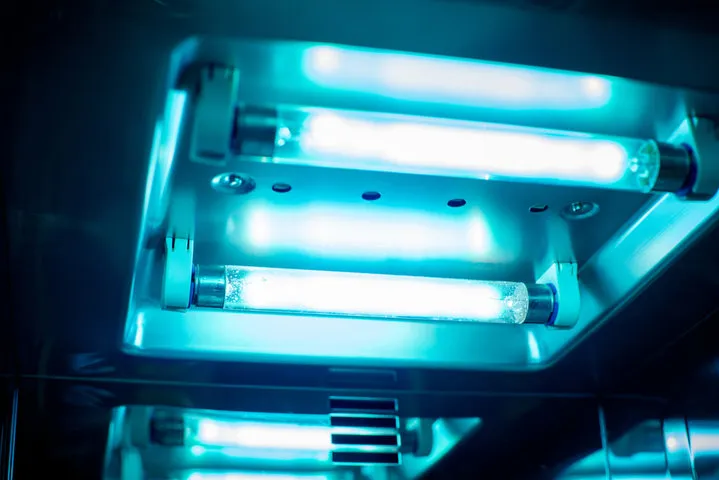

UV germicidal lights produce UV-C light (primarily near 254 nm), which damages the DNA or RNA of bacteria, mold, and viruses, preventing them from reproducing. For HVAC use, UV lamps are positioned so they continuously irradiate coil surfaces and the drain pan or pass the airstream through a UV field. Over time the reduction of microbial growth prevents biofilm buildup that insulates coils and restricts airflow.
Important: HVAC UV systems should use lamps that do not produce ozone (avoid 185 nm output). Ozone-producing lamps can create respiratory irritants and are not recommended for occupied homes.
Recommended placements and typical wattages
- Residential split systems (single indoor evaporator coil)
- Typical coil-mounted lamp: 18W to 36W low-pressure UV-C lamp mounted across the coil face or slightly downstream aimed at the coil and drain pan.
- One lamp is usually sufficient for standard residential coils; larger coils may need two lamps for full coverage.
- In-duct installations
- Use 24W to 48W lamps, with multiple lamps or a bank to achieve adequate exposure depending on duct length and airflow.
- For higher air speeds or longer ducts, increase lamp quantity to maintain effective dose.
- Commercial or multifamily units
- Higher wattages and multiple lamps sized to deliver the required UV dose across the coil face or airstream. Professional sizing based on airflow, coil size, and target microbial reduction is recommended.
Sizing should be done by a trained HVAC technician who measures coil dimensions and airflow to calculate the UV dose required. Generic wattage rules of thumb work only as an initial guide.
Typical installation process
- System inspection: Evaluate coil access, duct layout, airflow, and electrical availability.
- Sizing and placement plan: Determine lamp count, wattage, and exact mounting points for optimal irradiance.
- Mounting hardware installation: Brackets or sleeves are installed to position lamps for full coil coverage or a uniform in-duct field.
- Electrical connection: Lamps are wired to the system transformer or dedicated ballast. Install necessary interlocks so power is off when access panels are open.
- Verification: Measure UV output at the coil or in-duct location with a UV-C meter when available. Confirm safe lamp orientation and shielding.
- Documentation: Record lamp model, wattage, and recommended replacement interval.
Safety considerations
- UV-C light causes eye and skin injury with direct exposure. Ensure all service is performed with power off and protective eyewear when needed.
- Do not use 185 nm ozone-producing lamps in occupied spaces.
- Install interlocks or place lamps where they are not visible from living spaces.
- Ensure electrical connections meet code and use ballasts rated for the lamp type.
- Keep lamp bevels and quartz sleeves intact; replace damaged parts immediately.
Maintenance and replacement intervals
- Bulb life: Low-pressure mercury UV-C bulbs produce full output for about 9 to 12 months; photonic output gradually declines and bulbs should be replaced annually for consistent performance.
- Quartz sleeve cleaning: Clean sleeves every 6 to 12 months if dust or film accumulates, more often in dusty or pollen-heavy seasons.
- Ballast and hardware: Inspect annually; electronic ballasts typically last several years but should be replaced if lamp flicker or failure occurs.
- Performance checks: Visual coil inspections and optional UV-C output measurements or microbial swabs annually confirm continued effectiveness.
Performance expectations and measurable benefits
- Coil cleanliness: Visible reduction in mold and biofilm is often seen within 30 to 90 days after installation when lamps are properly sized and placed.
- Energy and capacity: Keeping coils clean can restore heat transfer and airflow, commonly improving system efficiency and reducing cooling run times. Typical energy or capacity improvement ranges from 5 to 15 percent depending on initial coil condition.
- Indoor air quality: Expect reductions in musty odors and lower viable surface microbial counts on treated surfaces. Airborne particulate or spore reduction depends on in-duct dosing and may be substantial when combined with filtration.
- Allergen and odor relief: Homeowners frequently report reduced allergy symptoms and fewer odor complaints after coil sanitation.
- Objective verification: Use UV-C meters, ATP swabs, or microbial surface cultures pre- and post-installation to quantify system performance when required.
Final considerations for Platte City homeowners
Given Platte City weather patterns and seasonal pollen, installing coil-mounted UV combined with periodic in-duct treatment can be especially effective at preventing recurring coil contamination and odors. Proper sizing, annual bulb replacement, and routine sleeve cleaning are essential for reliable long-term performance. For homes with persistent musty odors, allergy sensitivity, or older HVAC units with recurring coil fouling, a professionally designed UV solution can restore system efficiency and improve indoor air comfort.
