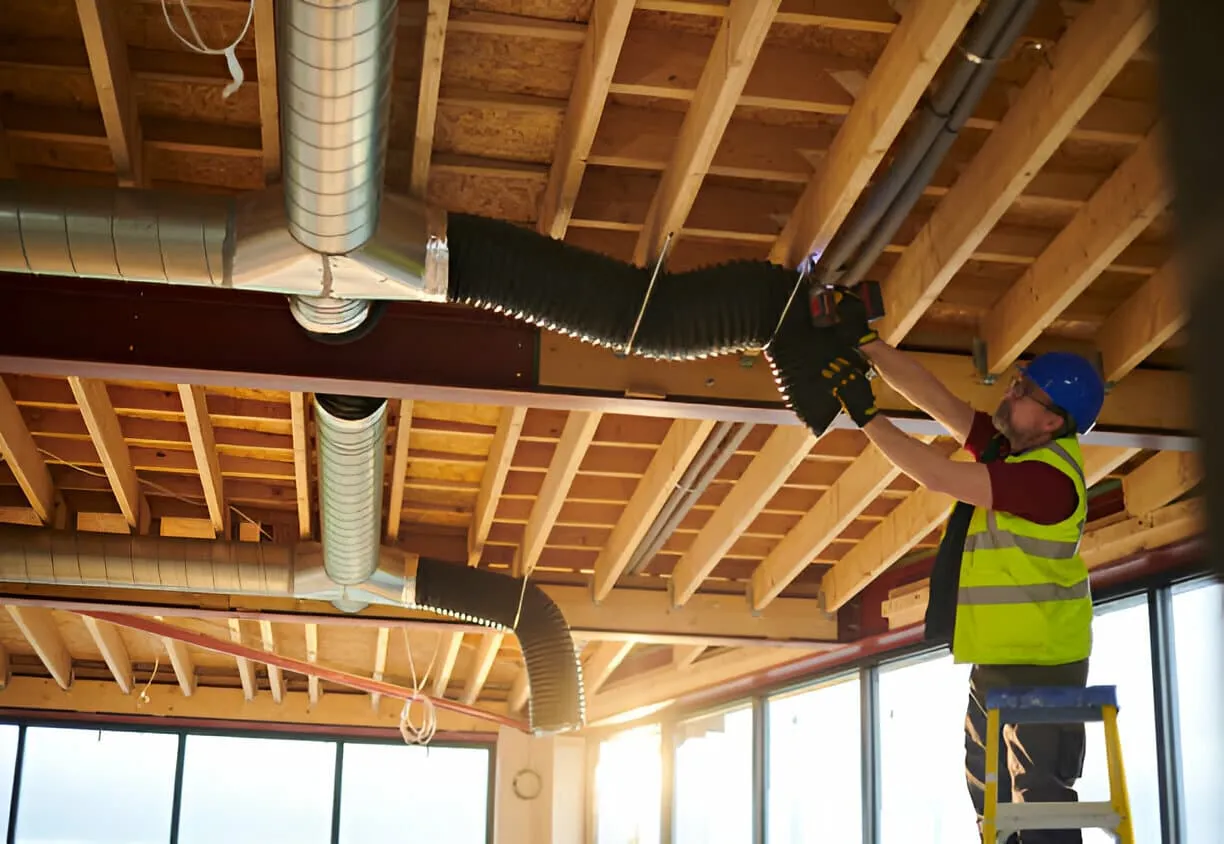

A well-designed duct system is the backbone of a comfortable, efficient home in Piper, KS. Whether you are building new, remodeling, or replacing aging HVAC equipment, professional duct design ensures even temperatures, lower energy bills, and longer equipment life. In Piper’s hot, humid summers and cold winters, poorly sized or routed ducts create hot and cold spots, high humidity, and excessive runtime-problems a proper duct design addresses up front.

Common duct design issues in Piper, KS homes

• Uneven room temperatures and persistent hot/cold spots.
• High energy use and long run cycles caused by oversized or leaky ducts.
• Low airflow at registers due to undersized trunk runs or excessive bends.
• Noisy registers and rattling ducts from high static pressure.
• Poor humidity control in summer because of imbalanced airflow and return pathways.
• Ducts run through unconditioned attics or crawlspaces with insufficient insulation.

These issues are common in older Piper neighborhoods where original systems were not sized to modern standards or in remodels where additions were tied into existing ducts.

What a professional duct system assessment includes

• Visual inspection of existing ductwork, equipment, and register layout.
• Measurements of supply and return airflows using anemometers and flow hoods.
• Static pressure checks at the air handler to identify restrictions.
• Thermal imaging to spot leaks and poorly insulated runs.
• Review of the home’s construction (attic/crawlspace access, conditioned envelope) and homeowner comfort complaints.

Assessment findings feed directly into accurate load and duct sizing.

Load calculations and Manual J/S/D sizing

• Manual J: Determines precise heating and cooling loads for each room based on orientation, insulation, windows, occupancy, and local climate factors in Piper, KS. This prevents over- or under-sizing equipment.
• Manual S: Selects HVAC equipment that matches the calculated loads and system performance goals. For example, choosing a variable-capacity heat pump with good humidity control for humid summers.
• Manual D: Produces a duct layout and sizes for all trunks, branches, and registers to deliver the required cfm to each room while keeping static pressure within manufacturer limits.

Using Manual J/S/D together ensures the system operates efficiently, quietly, and with even comfort.

Duct design options for new construction and remodels

• Trunk-and-branch systems: Cost-effective and flexible for many single-family homes. Proper trunk sizing and minimal bends are essential.
• Radial (concentric) systems: Often used for compact layouts or to reduce balancing complexity.
• Zoned duct systems: Multiple thermostats and dampers improve comfort control for additions, finished basements, or multi-level homes in Piper.
• High-velocity or small-duct systems: Consider where traditional duct runs are impractical (but require careful planning to limit noise).

The best option depends on house size, layout, attic/crawlspace access, and homeowner comfort priorities.

Airflow optimization techniques

• Minimize duct length and sharp turns; use gradual transitions to reduce pressure loss.
• Maintain recommended minimum velocities in trunks while reducing terminal velocities to limit noise.
• Provide dedicated returns, and avoid relying on transfer grills through hallways to protect air balance and indoor air quality.
• Use adjustable dampers and register location testing to balance airflow room-to-room.
• Consider zoning for rooms with different use patterns (home office, finished attic, sunroom).

These techniques improve comfort and reduce the runtime and wear on the HVAC equipment.

Materials and layout recommendations

• Prefer round or oval metal ductwork for main trunks where possible; they deliver better airflow per size than flat rectangular ducts.
• Minimize flexible duct runs and where used keep runs short, straight, and fully extended. Avoid crushed or kinked flex duct.
• Use properly sized boots and collars at registers to reduce turbulence.
• Locate main trunks centrally whenever possible to shorten branch runs and improve deliverability.

Appropriate material choices reduce leaks, noise, and airflow restrictions.

Duct sealing and insulation practices

• Seal all sheet-metal seams and boot connections with mastic or UL 181-approved sealing tapes. Avoid relying on foil tape alone for long-term sealing.
• For ducts in unconditioned attics or crawlspaces, insulate to at least R-6 (R-8 preferred where feasible) to reduce thermal losses and condensation risk in summer.
• Consider aerosol duct sealing for systems with many hard-to-reach leaks—this can reduce leakage by 30% or more in some homes.
• Ensure returns are airtight and that the air handler cabinet gasket is intact to prevent infiltration and pressure imbalances.

Proper sealing and insulation protect efficiency and indoor comfort in Piper’s seasonal extremes.

Coordinating duct design with HVAC equipment and installers

Duct design must match equipment performance limits. Manual S selections inform acceptable external static pressures and target airflow (cfm). Coordination includes:

• Confirming the chosen air handler and coil pressure drop characteristics.
• Setting target system static pressure and fan speed to meet designed cfm.
• Planning register count and locations with installers to match the installed duct runs.
• Verifying access for balancing dampers and measurement points during install.

Early coordination reduces callbacks, improper installs, and costly rework.

Project timeline and what to expect

• Initial assessment and walkthrough: typically a same-day or next-business-day visit.
• Design phase (Manual J/S/D and plans): usually completed within several business days depending on home complexity.
• Installation: small to average single-family home duct replacements or new installs commonly take 1–3 days; larger homes or complex zoning can take longer.
• Testing and balancing: performed after installation; allow a full day for precise airflow tuning and performance verification.

Timelines vary by job scope, access, and whether equipment replacement is part of the project.

Examples of past outcomes and expected energy savings

• Example: Replacing undersized, leaky ducts in a 1950s bungalow in Piper reduced run times, improved temperature uniformity, and produced measured energy savings in cooling season of 12–18% after sealing, insulation, and proper sizing.
• Example: A remodel that added a second-level bedroom suite with new properly sized ducts eliminated hot upstairs afternoons and reduced compressor cycling through better airflow distribution.
• Typical improvements: homeowners can expect reduced energy use, quieter operation, and improved humidity control. Savings vary by home condition but commonly fall in the 10–30% range when combining duct design upgrades with matched, efficient equipment.

Maintenance and long-term tips

• Inspect duct insulation and visible seams annually, especially after attic work or pest control visits.
• Keep registers clean and unobstructed; don’t block returns.
• Schedule periodic airflow checks and system tune-ups to catch drift in performance.
• If remodeling or adding rooms, re-run load calculations rather than simply extending existing ducts.

A properly designed and maintained duct system is an investment that pays back through comfort, efficiency, and longer equipment life.

Duct design tailored to Piper, KS homes considers local climate stresses, typical construction styles, and practical access challenges. When Manual J/S/D-driven design, quality materials, proper sealing, and coordinated installation come together, the result is a quieter, more comfortable home with lower energy use throughout the year.
